UBUNTU: ASUS y NVIDIA

Por Paco Aldarias Raya

Impreso: 17 de abril 2009

Email: pacolinux arroba inicia punto es

Web: http://www.aldarias.es/pacodebian

Con Linux Debian. En Valencia (España)

El documento tiene version .html, y .pdf, cambiando en el navegador la parte final podrás acceder a ambos.

Este documento es de libre reproducción siempre que se cite su fuente.

Realizado con: L^ATEX

Índice General

• 1 Introducción
• 2 Sensaciones
• 3 La placa
• 4 Los módulos
• 5 La gráfica
• Índice de Materias

1 Introducción

Vamos a ver la configuración de un equipo con:

• Tarjeta base asus M2N-SLI

• Tarjeta Gráfica NVIDIA GeForce 8600GT

  EN8600GT 512MB DDR2

  http://www.asus.com/products.aspx?l1=2&l2=6&l3=514&l4=0&model=1896&modelmenu=1

  Garantia: 3 años.

  Ver imagen 1 pagina

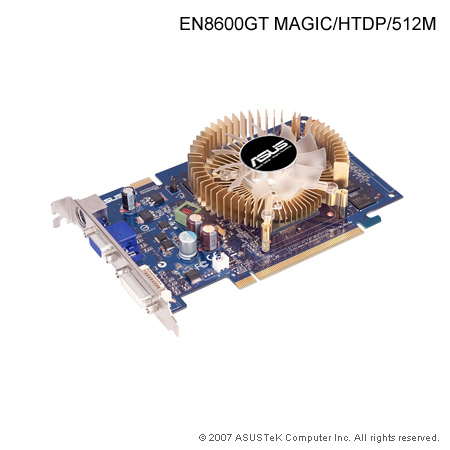

  Figura 1: EN8600GT MAGIC/HTP/512M/A



  EN8600GT MAGIC/HTP/512M/A

• Procesador AMD Phenom(tm) 9750 Quad-Core

  Con 4 procesadores de 1200.000 MHz

  http://products.amd.com/en-us/DesktopCPUDetail.aspx?id=397&f1=&f2=&f3=&f4=&f5=&f6=&f7=&f8=&f9=&f10=&f11=

  Processor  	AMD Phenom X4 Quad-Core
  Model 	9750
  OPN Tray 	HD9750XAJ4BGH
  OPN PIB 	HD9750XAGHBOX
  Operating Mode 32 Bit 	Yes
  Operating Mode 64 Bit 	Yes
  Revision 	B3
  Core Speed (MHz) 	2400
  Voltages 	1.20/1.25/1.30V
  Max Temps (C) 	61 C
  Wattage 	125 W
  L1 Cache Size (KB) 	128
  L1 Cache Count 	4
  L2 Cache Size (KB) 	512
  L2 Cache Count 	4
  L3 Cache Size (KB) 	2048
  CMOS 	65nm SOI
  Socket 	AM2+
  AMD Business Class 	No
  Black Edition 	No


• Caja NZXT

  Ver imagen 2 pagina

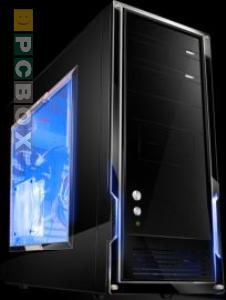

  Figura 2: nzxt



• Ubuntu 8.1

2 Sensaciones

Es muy silenciosa, el procesador se ajusta la la velocidad que necesita reduciendo el consumo. Ubuntu 8.1 detecto todo a la primera.

3 La placa

La placa ASUS, Modelo M2N-SLI, socket AM2

http://es.asus.com/products.aspx?l1=3&l2=101&l3=370&l4=0&model=1266&modelmenu=1

M2N4-SLI AMD Live! Ready:

- Soporte AMD Socket AM2 CPU

- Tecnología NVIDIA nForce4 SLI

- Dual channel DDR2 800

- ASUS Q-Connector

- ASUS CrashFree BIOS 3

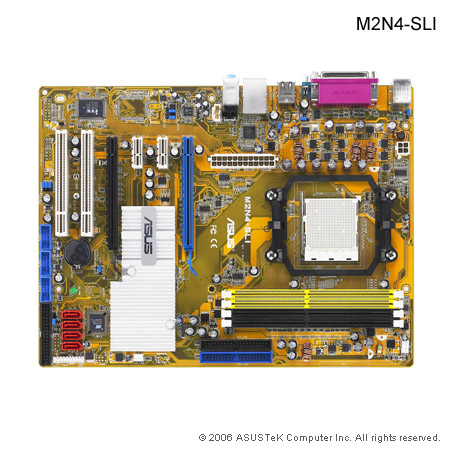

Figura 3: placa asus

Fue actualizada por usb la bios para soportar el procesador

http://support.asus.com/download/download.aspx?SLanguage=es-es

M2N-SLI BIOS version

Initial BIOS.

Tamaño Archivo 434.13 (KBytes)

2007/11/21 Actualizado

lspci
00:00.0 Memory controller: nVidia Corporation CK804 Memory Controller (rev a3)
00:01.0 ISA bridge: nVidia Corporation CK804 ISA Bridge (rev f3)
00:01.1 SMBus: nVidia Corporation CK804 SMBus (rev a2)
00:02.0 USB Controller: nVidia Corporation CK804 USB Controller (rev a2)
00:02.1 USB Controller: nVidia Corporation CK804 USB Controller (rev a3)
00:06.0 IDE interface: nVidia Corporation CK804 IDE (rev f2)
00:07.0 IDE interface: nVidia Corporation CK804 Serial ATA Controller (rev f3)
00:08.0 IDE interface: nVidia Corporation CK804 Serial ATA Controller (rev f3)
00:09.0 PCI bridge: nVidia Corporation CK804 PCI Bridge (rev f2)
00:0a.0 Bridge: nVidia Corporation CK804 Ethernet Controller (rev f3)
00:0b.0 PCI bridge: nVidia Corporation CK804 PCIE Bridge (rev f3)
00:0c.0 PCI bridge: nVidia Corporation CK804 PCIE Bridge (rev f3)
00:0d.0 PCI bridge: nVidia Corporation CK804 PCIE Bridge (rev f3)
00:0e.0 PCI bridge: nVidia Corporation CK804 PCIE Bridge (rev a3)
00:18.0 Host bridge: Advanced Micro Devices [AMD] Family 10h [Opteron, Athlon64, Sempron] HyperTransport Configuration
00:18.1 Host bridge: Advanced Micro Devices [AMD] Family 10h [Opteron, Athlon64, Sempron] Address Map
00:18.2 Host bridge: Advanced Micro Devices [AMD] Family 10h [Opteron, Athlon64, Sempron] DRAM Controller
00:18.3 Host bridge: Advanced Micro Devices [AMD] Family 10h [Opteron, Athlon64, Sempron] Miscellaneous Control
00:18.4 Host bridge: Advanced Micro Devices [AMD] Family 10h [Opteron, Athlon64, Sempron] Link Control
01:01.0 FireWire (IEEE 1394): VIA Technologies, Inc. VT6306 Fire II IEEE 1394 OHCI Link Layer Controller (rev c0)
05:00.0 VGA compatible controller: nVidia Corporation GeForce 8600GT (rev a1)

4 Los módulos

lsmod
Module Size Used by
binfmt_misc 16904 1
bridge 56980 0
stp 10628 1 bridge
bnep 20480 2
rfcomm 44432 0
sco 18308 2
l2cap 30464 6 bnep,rfcomm
bluetooth 61924 6 bnep,rfcomm,sco,l2cap
af_packet 25728 2
ppdev 15620 0
powernow_k8 22148 0
sbs 19464 0
pci_slot 12552 0
sbshc 13440 1 sbs
container 11520 0
video 25104 0
output 11008 1 video
wmi 14504 0
battery 18436 0
cpufreq_ondemand 14988 4
cpufreq_powersave 9856 0
cpufreq_stats 13188 0
freq_table 12672 3 powernow_k8,cpufreq_ondemand,cpufreq_stats
cpufreq_conservative 14600 0
cpufreq_userspace 11396 0
ipv6 263972 16
iptable_filter 10752 0
ip_tables 19600 1 iptable_filter
x_tables 22916 1 ip_tables
nls_iso8859_1 12032 3
nls_cp437 13696 3
vfat 18816 3
fat 57376 1 vfat
ac 12292 0
it87 28304 0
hwmon_vid 11264 1 it87
sbp2 29324 0
lp 17156 0
snd_usb_audio 89728 3
snd_pcm_oss 46848 0
snd_mixer_oss 22784 1 snd_pcm_oss
snd_pcm 83204 2 snd_usb_audio,snd_pcm_oss
snd_page_alloc 16136 1 snd_pcm
snd_usb_lib 24192 1 snd_usb_audio
snd_hwdep 15236 1 snd_usb_audio
snd_seq_dummy 10884 0
snd_seq_oss 38528 0
snd_seq_midi 14336 0
snd_rawmidi 29824 2 snd_usb_lib,snd_seq_midi
snd_seq_midi_event 15232 2 snd_seq_oss,snd_seq_midi
snd_seq 57776 6 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_seq_midi_event
snd_timer 29960 2 snd_pcm,snd_seq
snd_seq_device 15116 5 snd_seq_dummy,snd_seq_oss,snd_seq_midi,snd_rawmidi,snd_seq
snd 63268 16
snd_usb_audio,snd_pcm_oss,snd_mixer_oss,snd_pcm,snd_hwdep,snd_seq_oss,snd_rawmidi,snd_seq,snd_timer,snd_seq_device
soundcore 15328 1 snd
nvidia 7103300 34
agpgart 42184 1 nvidia
parport_pc 39204 1
parport 42604 3 ppdev,lp,parport_pc
i2c_nforce2 14468 0
pcspkr 10624 0
shpchp 37908 0
button 14224 0
pci_hotplug 35236 1 shpchp
i2c_core 31892 2 nvidia,i2c_nforce2
evdev 17696 6
ext3 133384 2
jbd 55444 1 ext3
mbcache 16004 1 ext3
sr_mod 22212 0
cdrom 43168 1 sr_mod
sd_mod 42264 10
crc_t10dif 9984 1 sd_mod
sg 39732 0
usbhid 35840 0
pata_acpi 12160 0
hid 50560 1 usbhid
pata_amd 18692 8
ohci1394 37936 0
ieee1394 96324 2 sbp2,ohci1394
ata_generic 12932 0
sata_nv 30600 0
forcedeth 61328 0
libata 177312 4 pata_acpi,pata_amd,ata_generic,sata_nv
scsi_mod 155212 5 sbp2,sr_mod,sd_mod,sg,libata
ehci_hcd 43276 0
dock 16656 1 libata
ohci_hcd 31888 0
usbcore 148848 6 snd_usb_audio,snd_usb_lib,usbhid,ehci_hcd,ohci_hcd
thermal 23708 0
processor 42156 2 powernow_k8,thermal
fan 12548 0
fbcon 47648 0
tileblit 10880 1 fbcon
font 16512 1 fbcon
bitblit 13824 1 fbcon
softcursor 9984 1 bitblit
fuse 60828 7

5 La gráfica

lspci

05:00.0 VGA compatible controller: nVidia Corporation GeForce 8600GT (rev a1)

glxgears

20957 frames in 5.0 seconds = 4191.263 FPS

sudo nano /etc/X11/xorg.conf

Section "Monitor"
	Identifier	"Configured Monitor"
EndSection

Section "Screen"
	Identifier	"Default Screen"
	Monitor		"Configured Monitor"
	Device		"Configured Video Device"
	DefaultDepth	24
EndSection

Section "Device"
	Identifier	"Configured Video Device"
	Driver	"nvidia"
EndSection

Como configurarla:

• sudo nvidia-xconfig
• sudo dpkg-reconfigure -phigh xserver-xorg

Drivers nvidia serie 6:

http://www.nvidia.es/object/linux_display_ia32_177.82_es.html

Descargar el archivo: NVIDIA-Linux-x86-177.82-pkg1.run
